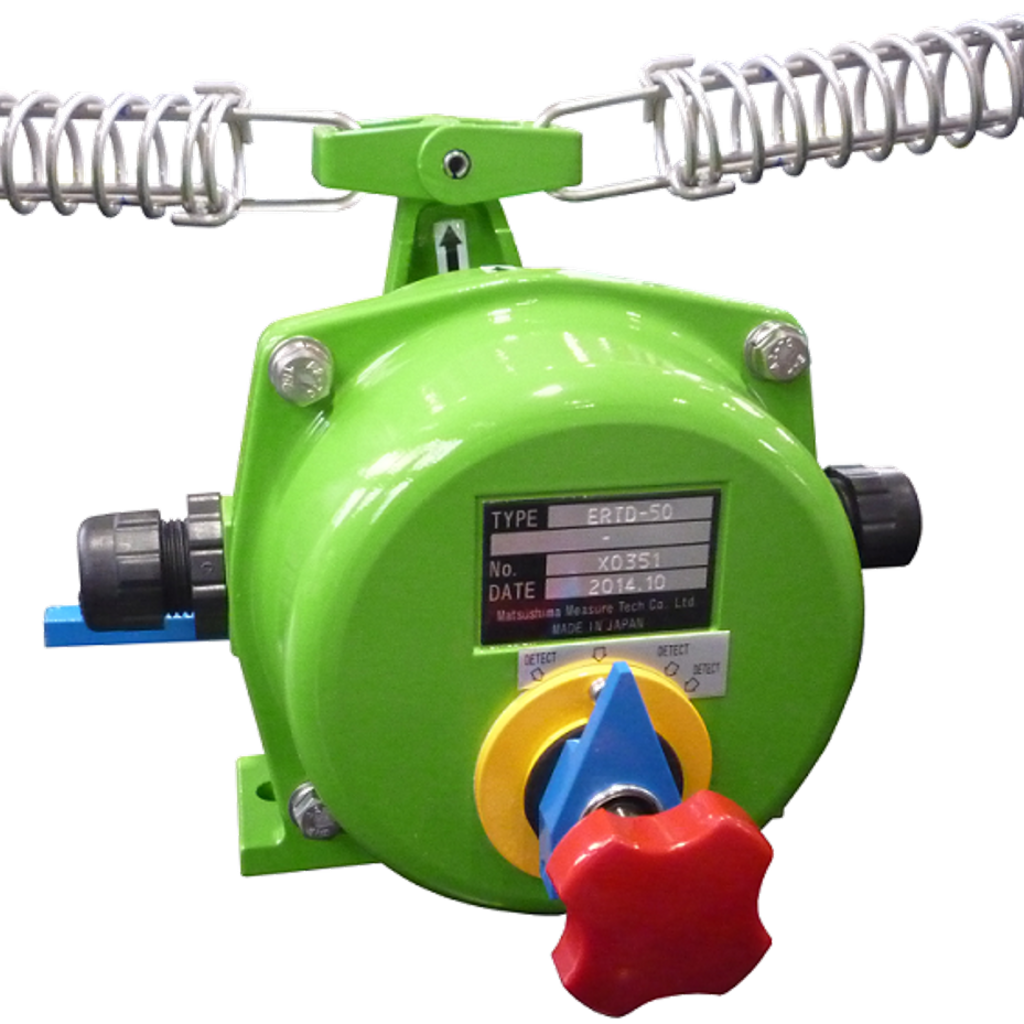

PULLSTOP

PULLSTOP is an emergency stop safety switch for the belt conveyor like basic Pull Cord Switch but integrated with risk assessment design such as wire-rope break alarm, additional push button, dual limit switches construction, etc.

Wire-rope plus push button construction allows quick access to the switch system from anywhere alongside the conveyor.

Reliable operation with the world top class quality since 1950's as a world leading brand.

Effective as a backup interlock as well to keep stopping the conveyor during the site work.

Additional functions to the basic model for further safety operation.

• Wire-break alarm
• Additional bush button
• Dual limit switches
• Positive-break contacts

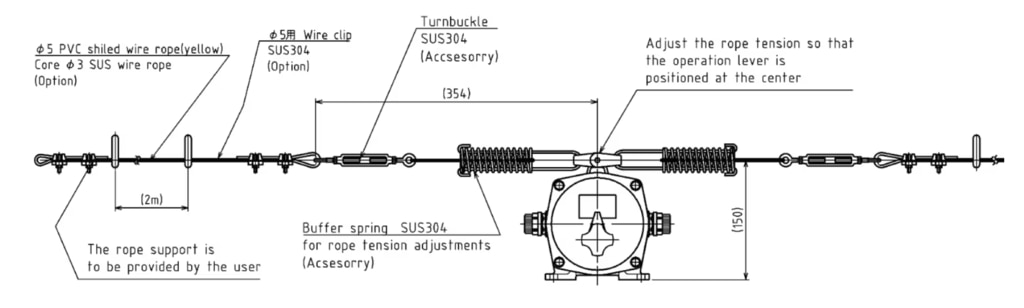

50m length of wire-rope is connectable at each sides of PULLSTOP, i.e. one unit covers total 100m length.

No worries about malfunctions due to thermal elongation and shrinkage of the wire rope because of the above "Buffer Spring" and "Turnbuckle" construction.

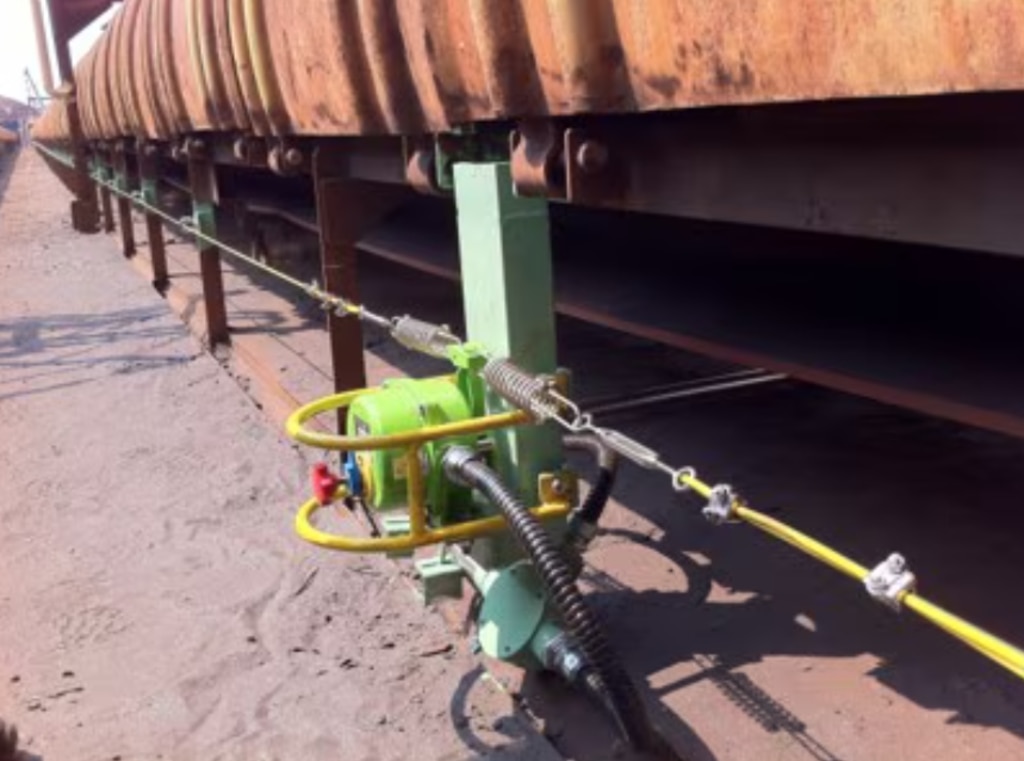

Connect wire-ropes at both sides of the PULLSTOP alongside the belt conveyor.

Now you can pull wire-rope anywhere alongside the belt conveyor.

When you pull the wire-rope, the lever connected with wire-rope rotates and the internal cam drum rotates accordingly to operate microswitches for signal and stopping the conveyor.

For more details, please CLICK below [Product Catalog], [Drawing / Manuals] or ASK us via [Question and Inquiry].
