Conveyor Belt Rip Accident Prevention

Problems at the site

Conveyor belt rip accident generally happens at transferring chutes area.

There are many transferring chutes required to transport raw materials from mining area or ship unloading facilities to next process on bulk material handling process, however, this transferring chute area has a risk of belt rip accident which happens when sharp stone or other foreign obstacles mixed in the transported raw material stack in the conveyor belt just underneath the transferring chute and tear the belt because the conveyor is stil running.

Belt Rip Detector is the solution to detect the accident and stop the conveyor to minimize the loss but there are some problems of detecting performance or maintenance work, etc.

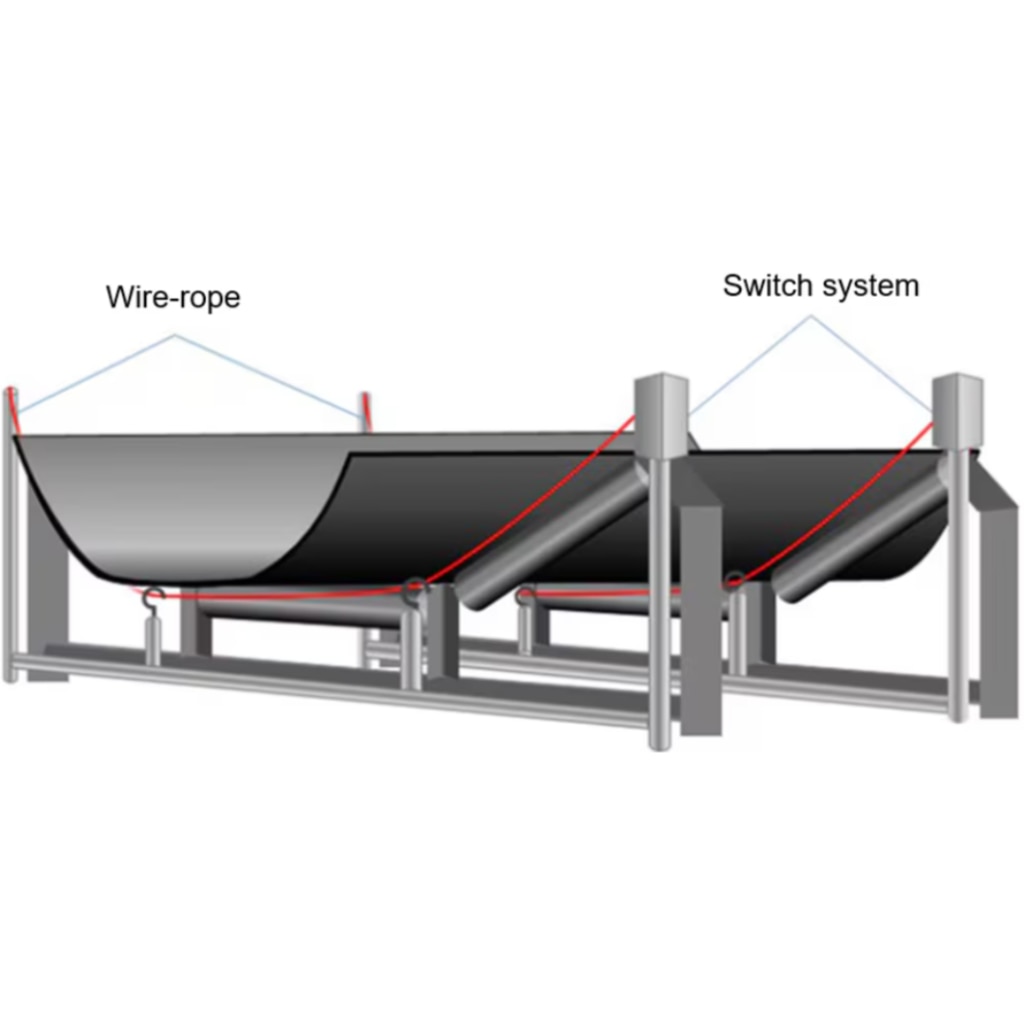

Wire-rope Switch Type Belt Rip Detector with mechanical switch construction may cause malfunctions frequently when the site vibration is big.

Wire-rope type detector requires certain space for tripping switch and this space becomes DEAD SPACE for detection.

Conveyor belt must be suspended by chain block to install the detectors and those work sometimes requires unexpected time and manpower.

Solved by the Belt Tear Detector

Matsushima Measure Tech Belt Tear Detector, which sensor system is touch sensor principle instead of wire-rope system and has trough angle adjustment mechanism, provides stable detection without dead space and easy & flexible installation.

Simple touch sensor construction (instead of mechanical switch) provides stable performance without malfunctions due to the site vibration.

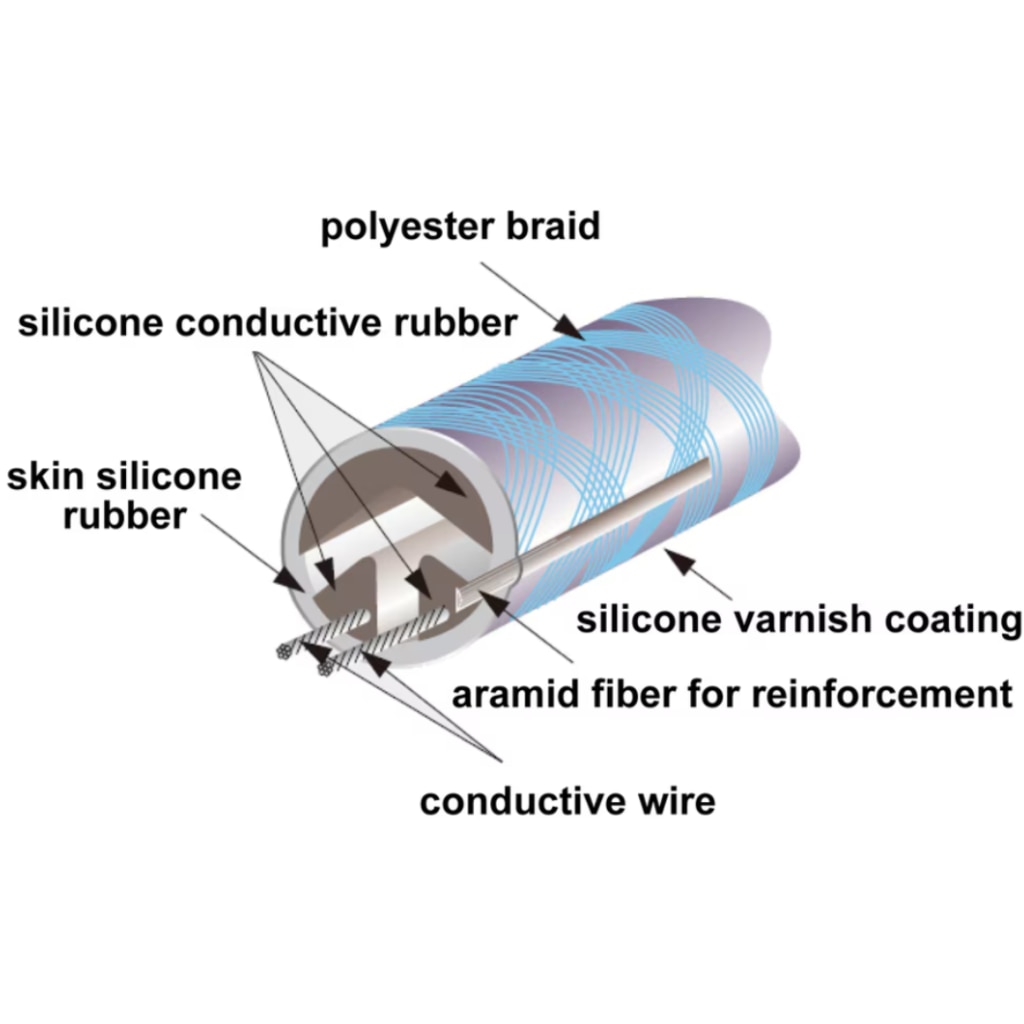

It is touch sensor (cable switch) system which detects when it is pressed by the foreign obstacle.

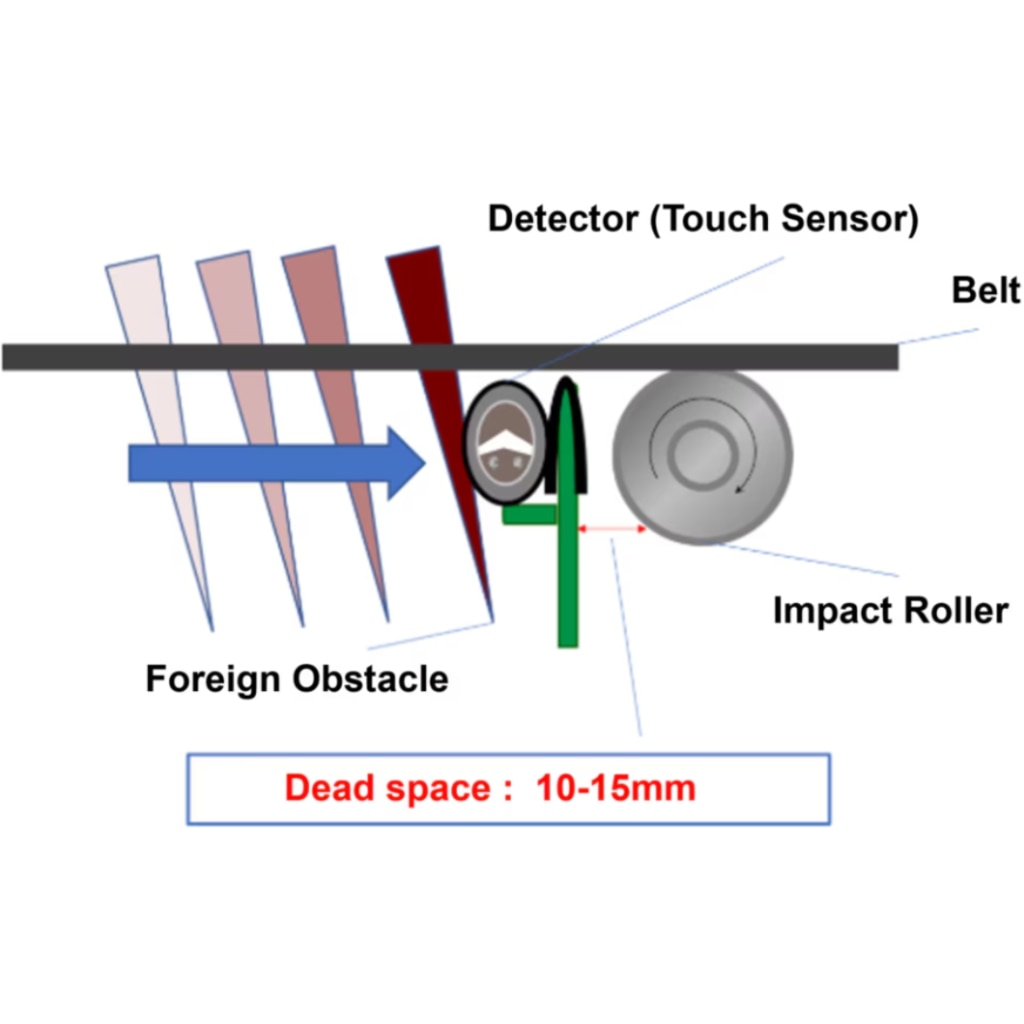

So, the dead space is quite narrow because the necessary space for detection is small.

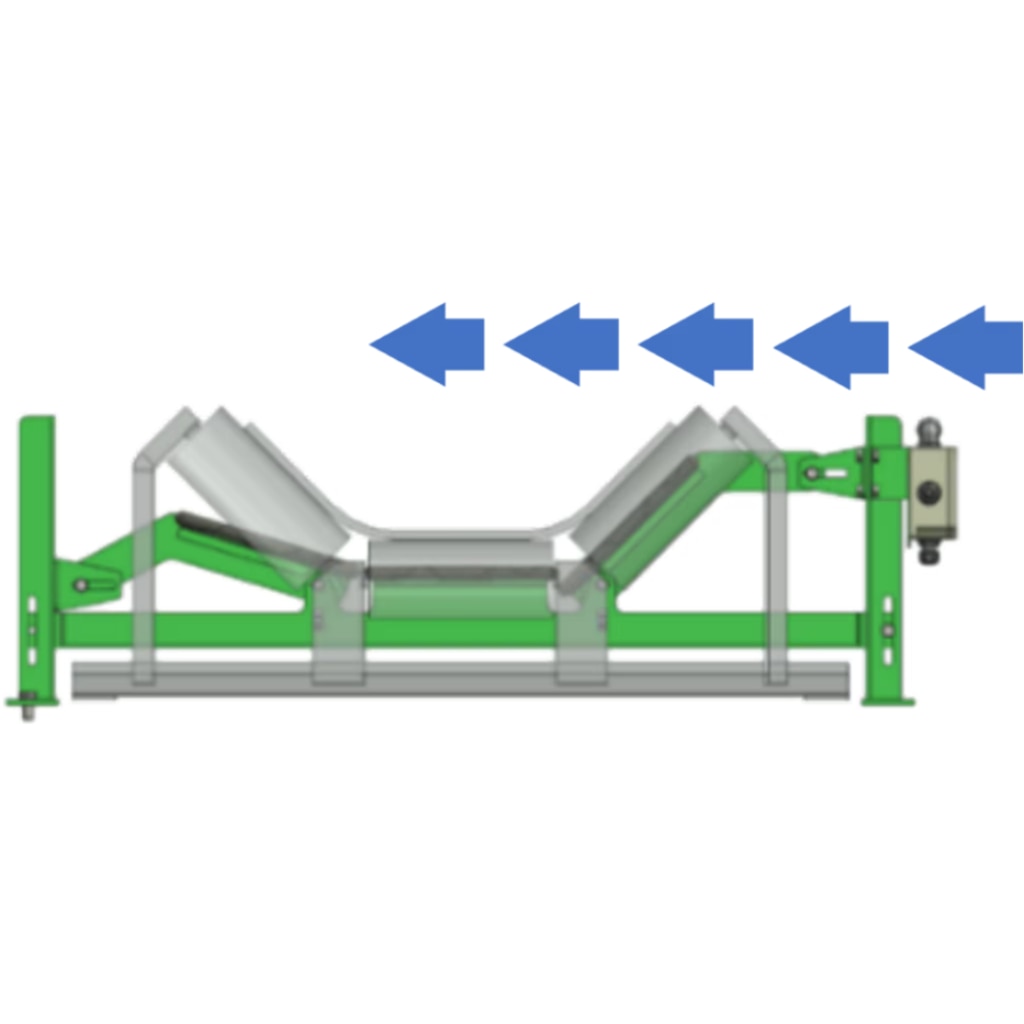

Trough angle adjustment mechanism allows easy installation without suspending the conveyor belt by chain block.

Installation work time including preparation will be reduced into half or less.

Achieved by the technology

Stable detection dispels worries of trouble.

Detector mounting work time and maintenance time are reduced.

Possible to minimize the loss of accident besides unwanted work is reduced.
